Paintable Edge Tech

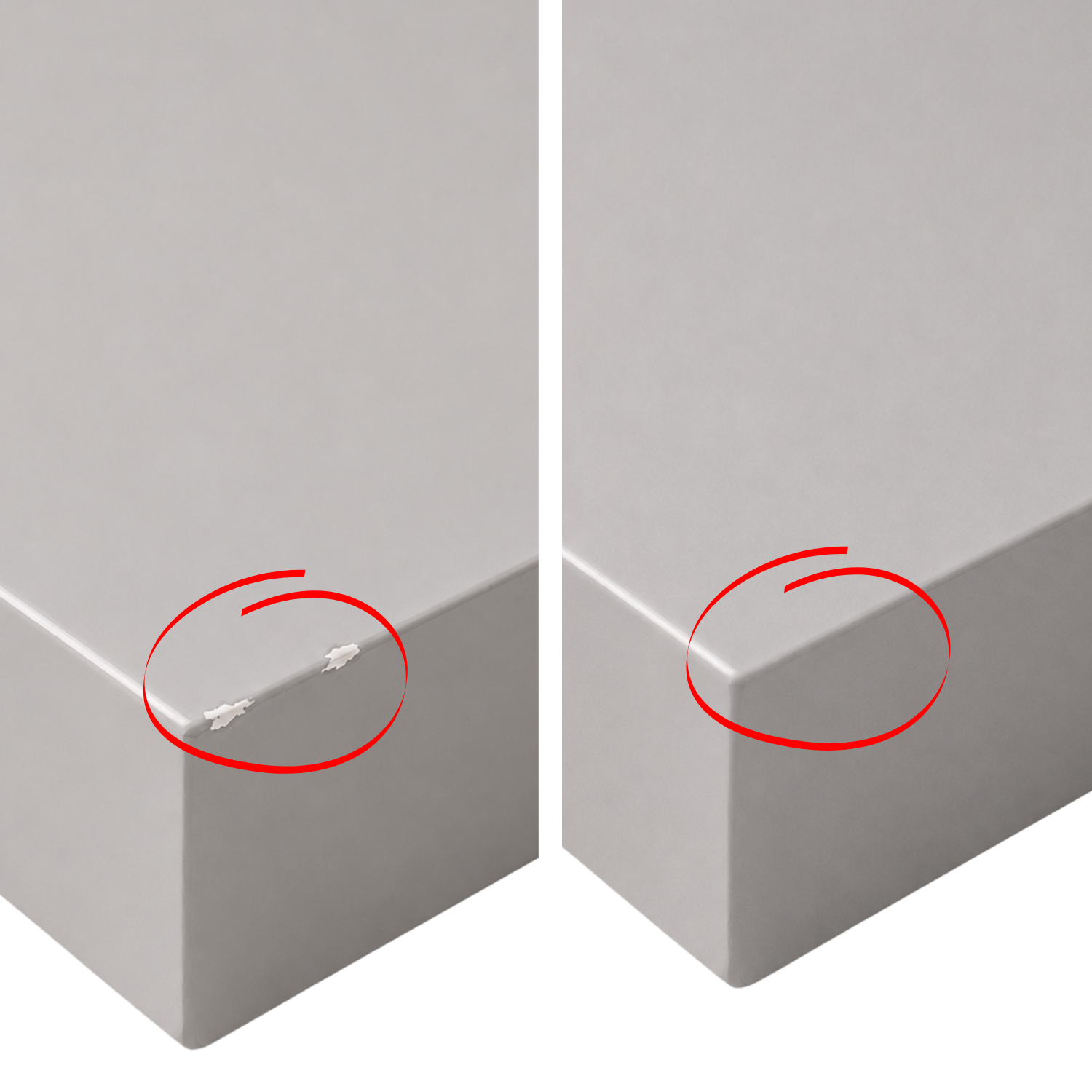

Painting damage in the milling radius can compromise the final quality of furniture components, leading to peeling, cracking and internal scrap.
Our solution:
ABS edgebands with special additives in the material formulation, developed to improve paint and lacquer adhesion, even in the most critical area: the edge radius.
The result is clear:
Excellent adhesion, faster availability for further processing and greater production efficiency. After painting or lacquering, components can be processed immediately, without the risk of paint or lacquer peeling or cracking.
A tested solution for large-scale furniture production.
Availabe immediatly for further processing:
- Transport
- Storage
- Further Processing
3-Step Application Process

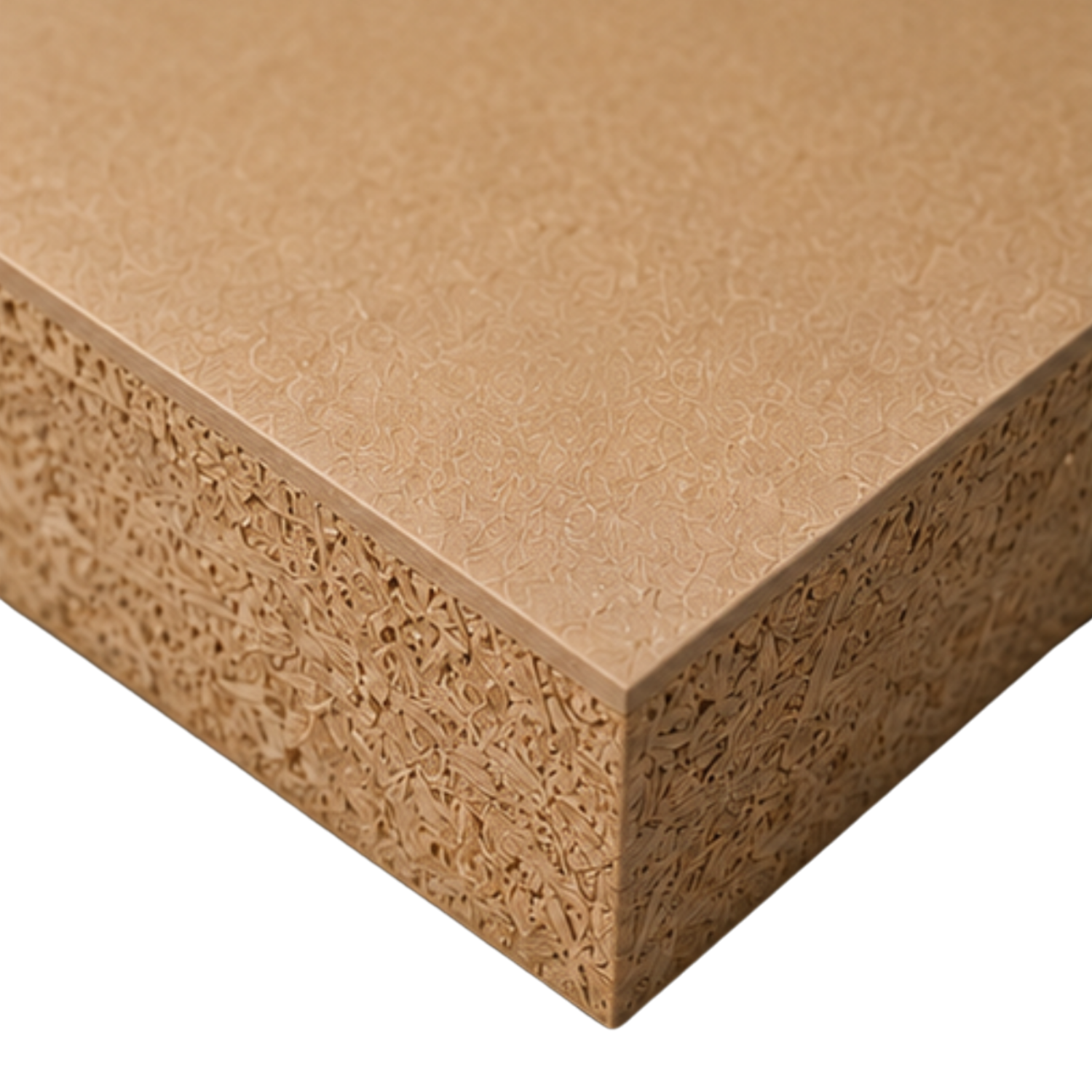

1. Board - raw surface
Raw board specially prepared for painting and lacquering, for a smooth and continuous finish.

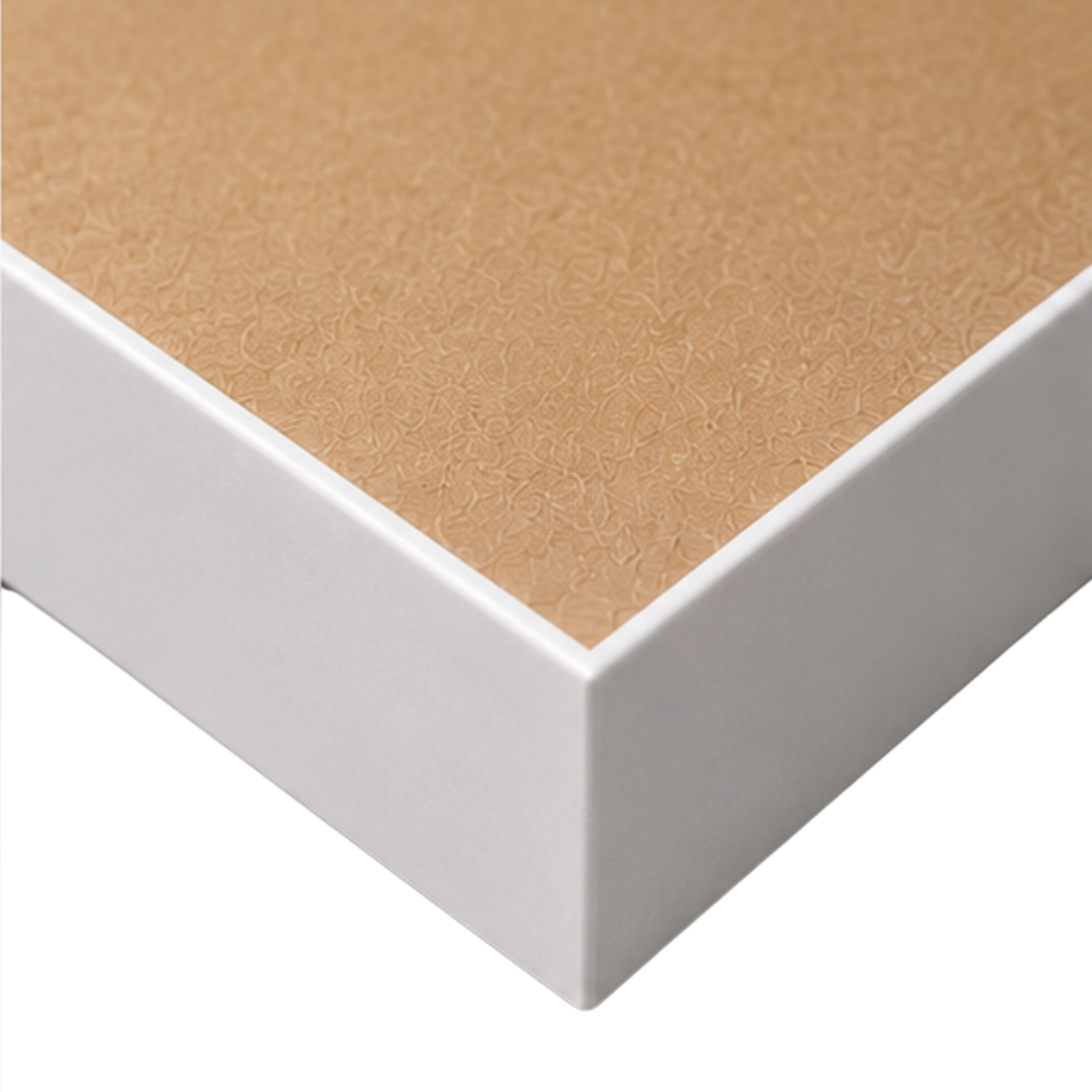

2. Board + Edgeband
Paintable Edge applied to both sides, ensuring uniform paint absorption and optimal paint adhesion.

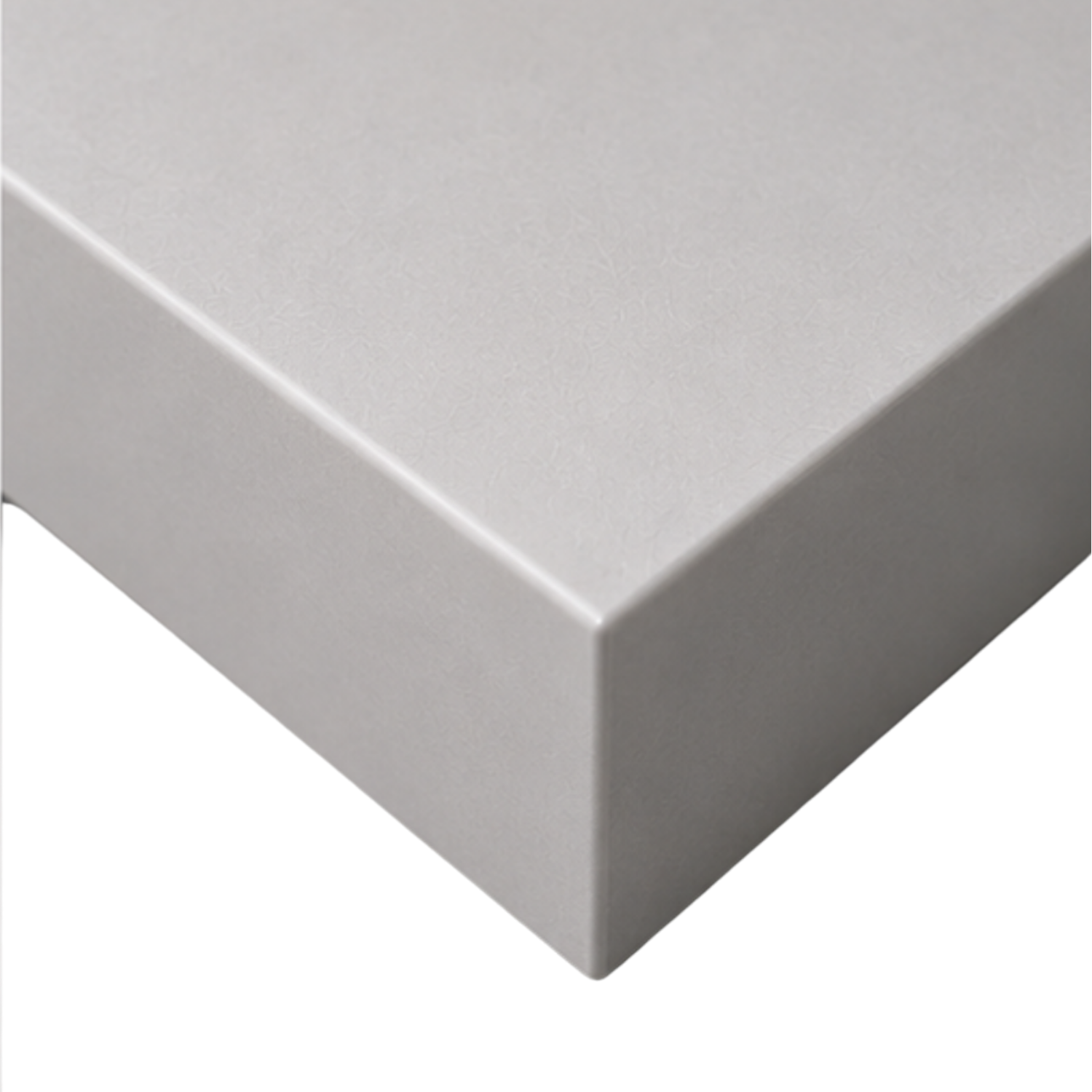

3. Lacquered finish
Board and Paintable Edge lacquered in the same colour for a smooth, homogeneous finish.
Specifications
STANDARD
Version: Conventional primer on the back side.
Material: ABS
Thickness: 0.40 - 3.00 mm
Widths: 14 - 600 mm
Unicolours
FUSION
Version: Functional layer on the back side
Material: ABS
Thickness: 0.80 - 2.00 mm
Widths: 14 - 110 mm
Unicolours
Note: Upon request, ABS Paintable Edge Tech can be supplied with an additional coating primer to support specific coating applications.
